Big Game Trolling
Reels-Pg1
|
Game reel -Cyclone :Convex side plate smooth, with laser itched logo
| code | spool capacity | gear ratio | Remarks |
| R15W | 15lb/660yds | 3.9:1 /1.7:1 | 6bb, Drag test at a max set load of 25kg/55lb |
| R18W | 18lb/680yds | 3.9:1 / 1.7:1 | 6bb, Drag test at a max set load of 25kg/55lb |
| R20W | 20lbs/920yds | 3.6:1 / 1.6:1 | 9bb, Drag test at a max set load of 30kg/65lb |

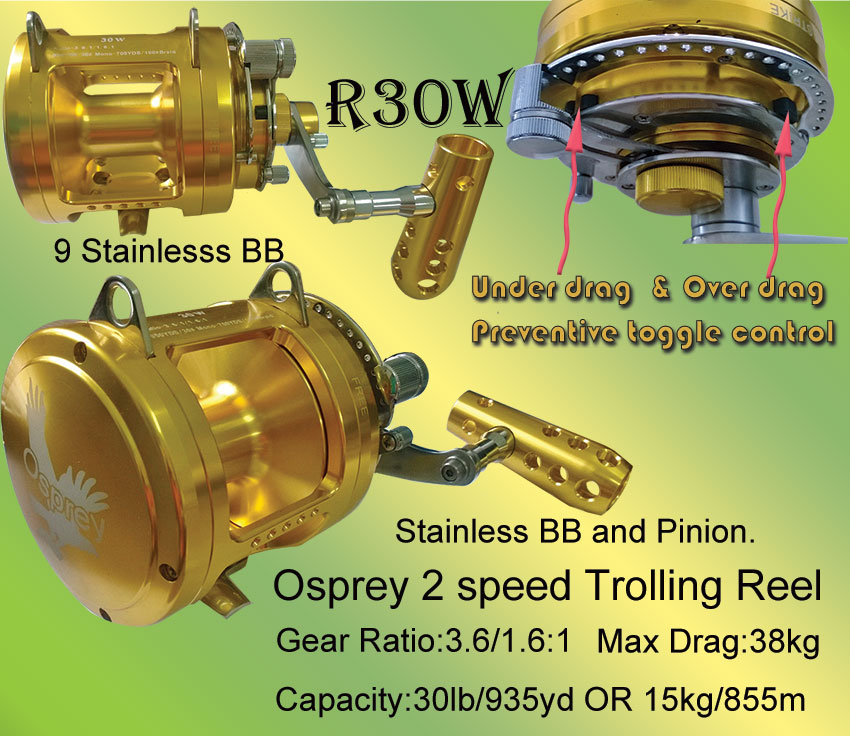

| R30W | 30lb/935yds | 3.6:1/ 1.6:1 | 9bb, Drag test at a max set load of 38kg/85lb- |
| R50W | 50lb/970yds | 3.1:1 / 1.3:1 | 9bb, Drag test at a max set load of 48kg/107lb |
| R80W | 80lbs/1020yds | 2.5:1 / 1.3:1 | 9bb, Drag test at a max set load of 70kg/155lb |
| R130W | 130lb/1000yds | 2.1:1/1.2:1 | 11bb, Drag test at a max set load of 80kg/180lb |
|
drag disc make from special anti shine
material |
|||
Spools , side frame and side frame, machine from high
strength alu. alloy stock bar.
Finish: Burnish and anodized.
for a superb shining surface.
Speed reduction gearing for min. cranking effort.
High speed: 4.1:1
Low speed: 1.8:1
Quick gear change system to ensure effective cranking effort when reel is under
varying load, when line is loaded.
Pinion and gears
Machined from stainless steel stock.
hardened and tempered to ensure high wear resistance.
and finally chemically treated to ensure corrosion resistance to any salt or salty
environment.
Single drag
|
||||||||||||||||||||||||||||||
